Application:

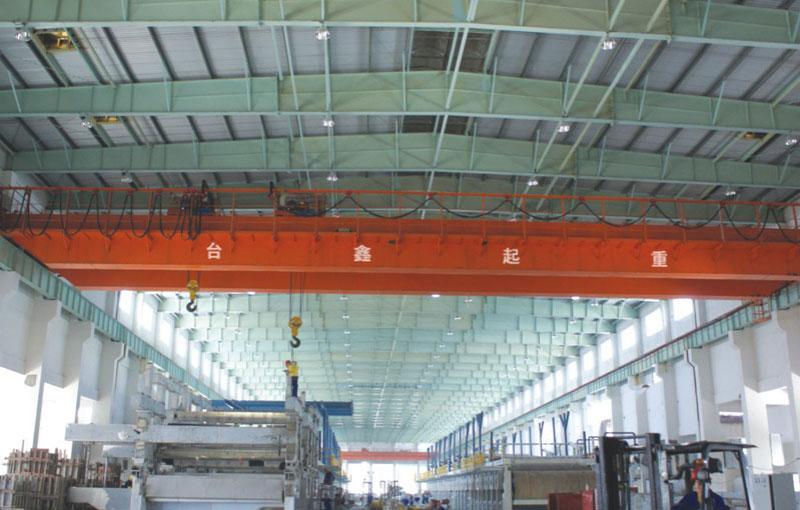

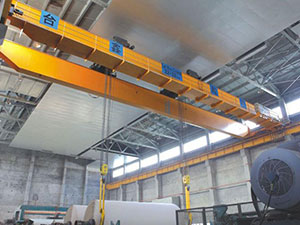

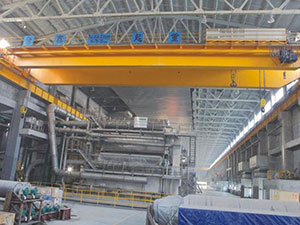

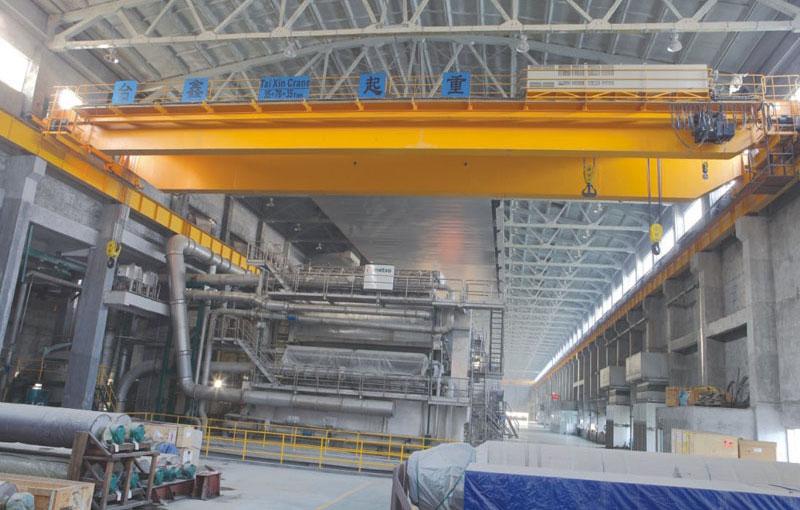

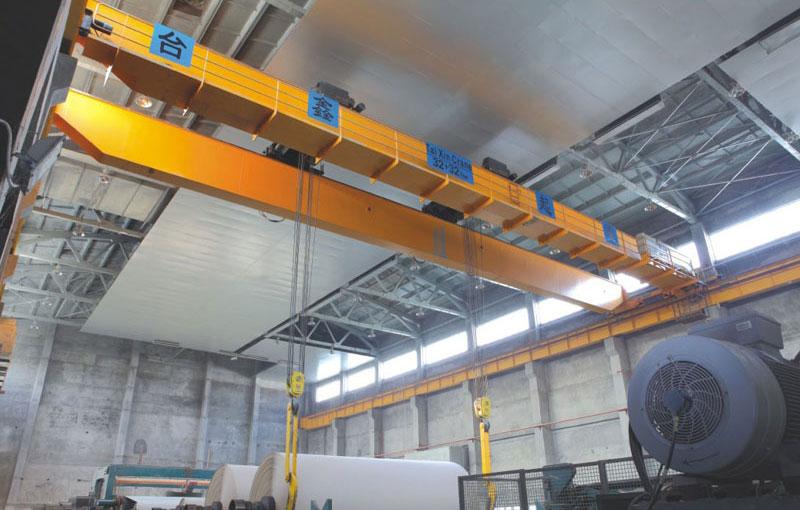

The overhead lifting bridge crane is suitable for all kinds of general lifting conditions, and because it features a rotatable hanging girder, it is suitable for indoor workshops (steel mills, storage yards and storage room, etc.) and also some outdoor fixed bays. It is mainly used for loading, unloading and transporting steel plates, steel sections, roll coil and other materials. It is especially suitable for hoisting objects of various specifications that require horizontal rotation. Under the hanging girder are special lifting spreaders such as the electromagnetic sucker, clamps and so on. Thanks to these, the overhead lifting bridge crane has a wide range of users.

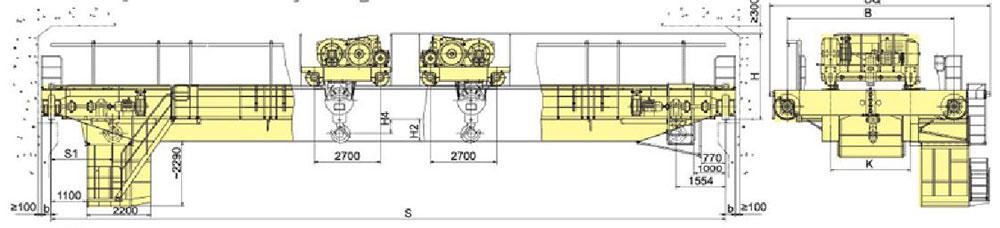

• This double girder crane features a double-girder, double-track and double-trolley design. And it consists of four parts: electric hoist, bridge, cart running mechanism and electric appliance.
• This kind of double girder crane comes with a separate transmission system on every single hoist trolley. So the hoisting mechanisms on every two hoist trolleys can independently finish the lifting process, can also be lifted or lowered together, and turn together, to complete the task at hand.
• The double girder crane is a small crane that moves under the flange of the I-beam rail, and has the characteristics of convenient storage and transportation, great versatility, low building height requirements, and convenient operation and maintenance.
• There are two types of electric hoists, CD1 (single speed) and MD1 (double speed), can be matched with this crane. And you can use buttons to operate all agencies on the ground.
