The industrial heavy duty gantry crane is specially designed for the loading, unloading, and lifting of various materials within a fixed span in freight yards and open-air warehouses of railway stations, port terminals, and industrial and mining enterprises and materials departments. It can also be equipped with a variety of professional hooks for a number of special operations. It is a versatile general-use lifting device.
|Lifting Capacity(t) ||10 ||16/3.2 ||20/5 ||32/5 ||50/10 |
|Main and Vice Operating Speed(m/min) ||7.9 ||7.9/11.3 ||7.2/11.6 ||7.6/11.3 ||5.2/9.9 |
|Cart Operating Speed(m/min) ||39 ||38 ||38 ||36 ||36 |
|Trolley Operating Speed(m/min) ||37 ||37 ||37 ||37 ||37 |
|Working Classification Grade ||A5 ||A5 ||A5 |
|Power ||3AC,50HZ,380V ||3AC,50HZ,380V ||3AC,50HZ,380V |
|Recommended Steel Track ||30Kg/m~38Kg/m ||30Kg/m~38Kg/m ||38Kg/m~50Kg/m |
|Total Capacity(KW) ||40 ||53 ||56 ||90~110 ||106~129

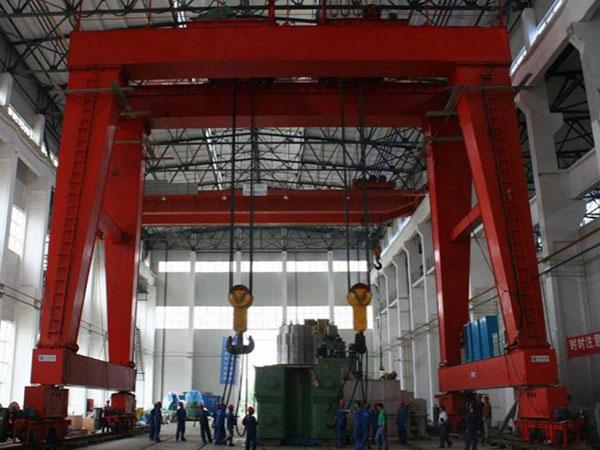

- Industrial heavy duty gantry cranes consist of a gantry, cart, trolley, driver’s cab and electrical device. Their normal lifting capacity is 10-50t, their working classification grades are A5 and A6. The working environment temperature is -25°C～+40°C, the average temperature in 24 hours should not be higher than 35 °C.

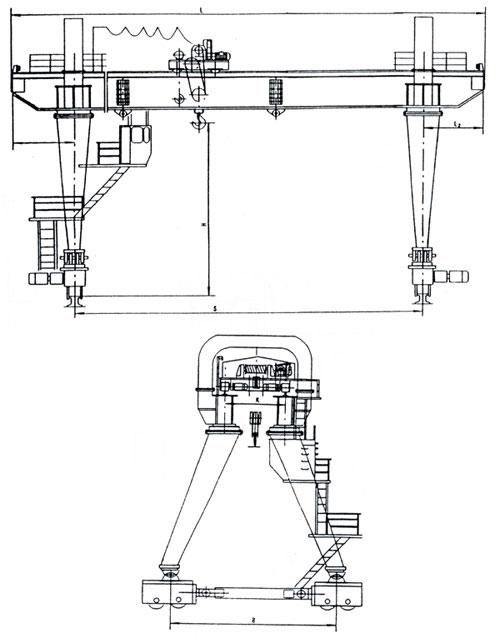

- The gantry adopts box type double girder welding structure, the operating mechanism of cart adopts respective driving, and all the mechanisms are operated from the control room.
- Industrial heavy duty gantry cranes have two kind methods of electricity conduct: by power cable and by slide wire, customers can choose any of them.
- Their altitude of the installation and use site must not exceed 2,000 meters. If the altitude is higher than 1000m,then the motor capacity have to be checked.
- There are three types of control methods: ground control, control room control, and remote control for customers to choose. The standard control method is control-room control. All the mechanism are operated in the control room and equipped with rain protection devices.
- This crane runs smoothly and has good wind resistance. All mechanisms are equipped with safety protection devices.
